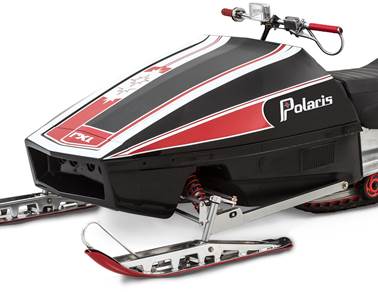

This page documents progress on a new hood for the Polaris RXL Sno-Pro Conversion Kit.
Report 5/9/25
Oh boy.
I finished matching nose and hood joint pretty well. All along, I’ve been watching how the hood sticks out past the rear of the aluminum bumper (fuzzy photo) and hoped my work up front would cure that. It didn’t.
My choices now are three.
- Look for something on hood bottom edge causing an impediment
- Work the nose/hood joint some more, but I’m not going to move the hood forward by ½"
- Cut the hinge cavities out of the hood and cut ½" from hood front to move it forward. This scares me because now the side joints may be out of whack. Then I’d have to reinstall hinge cavities perfectly.
I didn’t need this because I was getting close. I’ll tell you how this all goes.
Report 5/2/25
I’m still in the process of blending the lines between the nose and hood. It’s a slow process of adding material and sanding it down. Then I go back and mount the parts on a chassis and make new notes for more changes. Grinds up time. Can’t wait until I start finish sanding the pre mold pattern (plug).
P.S. I hate sanding but it’s the only way to produce the best possible finish on the final parts.
Report 4/6/25

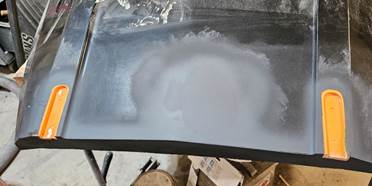

Hinges are pretty much in place. I have to futz a bit more with the hood and it will be ready for the great sanding job.
Two steps back. While I had the hood kinda ready I started making the trimming guide. It is now done and allows the glass people to know where to trim out the holes and the great cutaway for sleds with the wider new seats.
Report 4/1/25

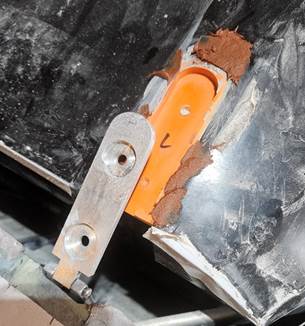

Last time I showed the hinge pockets attached to hood.

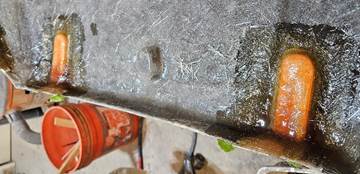

This is the underside sealing of the pocket.
Now I’ve glassed the pockets to the underside.
I closed the front hood edge to eliminate any weakness at the hood/nose joint.

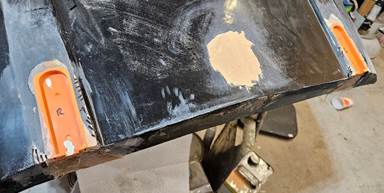

Top side of hood with finished edge and blended pockets.
After I complete the nose then the long sanding process will begin.
Report 3/25/25

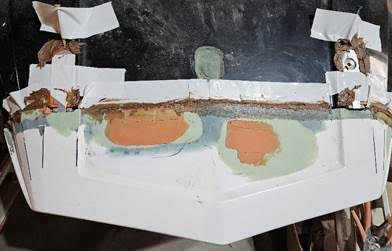

I think I finally got it! You are looking at the RXL hood and nose with duct tape and brown Bondo slurped around in a mess. To me, it’s a watershed moment of perfect order.

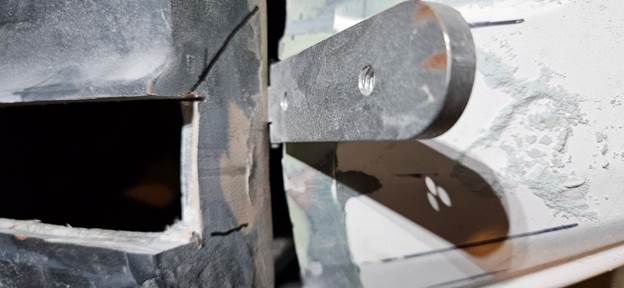

The hidden hinge issue has been kicking my butt. Today I got all the alignments keyed in. The brown stuff is really a serious autobody filler with fiberglass strands for strength. You can see the aluminum hinge on the right. It’s glued to the hood. In a future photo I’ll show you the filler ground down so you can see what’s really going on. If I’m right, this is the moment that separates the before with the after. At this point it’s downhill. Which means a lot of sanding.
My plan is that all you’ll see of the hinge is the bottom part (with blocks and a bit of orange). The upper part of the hinge with the recessed hole will be flush with the hood. This part will be hidden by the hood graphics. Oh happy day.
My reports will be happening more frequently now because the process will speed up. Hang in there, dudes.
Report 2/21/25

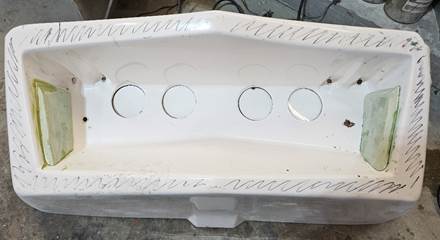

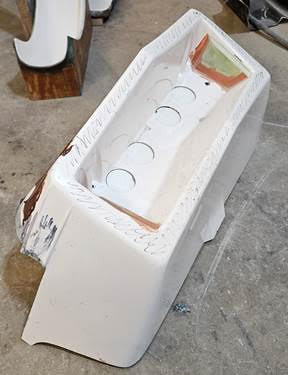

This photo of these mesh grill mounts may not look like a big deal but I’ve been working on them for some time. The shape has to just right or the nose won’t pull from the mold.
Here they are mounted in the nose.
Report 2/14/25
I received a call from one of you asking “how is it going?” This is my bad. My intent was to report significant progress. I will from now on report anything that is movement. The more often I report, the more comfortable you will be. One, you will know I’m still alive (Hey Tom, you know that dude is 83 and could topple over at any time.) And two, you’ll see action that may be of interest.

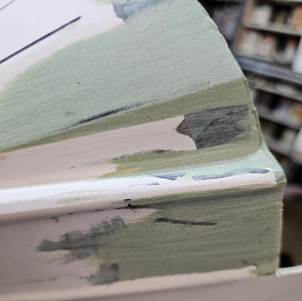

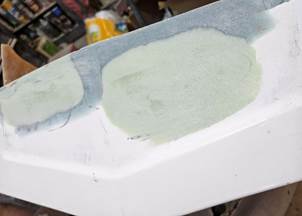

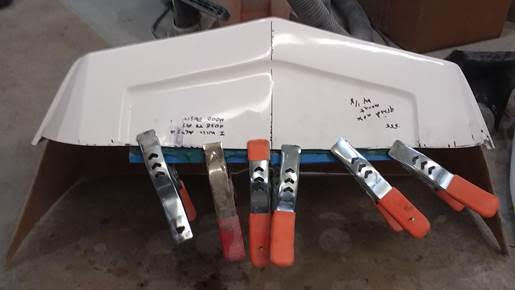

These three shots show how I’m finishing the nose to close the gap between it and the hood.
Here are the stepped pieces in the nose sides, which will become the grill-screen mounts. No longer will you have to fumble with little angle brackets to mount the screen. Two small screws on both sides will be simple for mounting.
When the temperature in my pole barn reaches 20o above zero, I can return to the hinge mounting work. When nose and hinges are complete, then it’s the long process of sanding and polishing the hood and nose parts prior to a new mold. When you see that stage, it will be the end of the process and production will begin. When parts start coming out of the molds, I will drop motorcycle production and spend all my time to shipping RXL kits.
Speaking of shipping, much has changed. Greyhound Express was shut down. It was wonderfully cheap. Now we have to deal with the costs of UPS etc. If you live in ND, SD, MN, NB, IA, WI, IL and the Ironwood tip of MI’s U.P. you are served by Speedee and they are reasonable (under $200 I think). To ship to other parts of the US snowbelt, we’ll have to rely on private snowmobile & motorcycle shippers. We’re covered in Saskatchewan and Manitoba because I have a cheap way of getting them across the border. If you live in other provinces I’ll have to ship to collection points on this side and you’ll have to drive across do a pickup and return to Canada.
"Progress" Report 10/24/22
RXL Setback

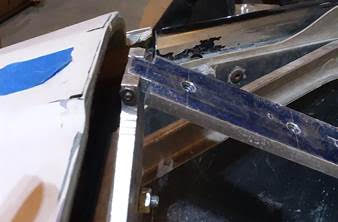

I happily got my new hinges on 8/10/22. When I pulled the project out this weekend to restudy the problem of the hinge pivot location vis-vi the nose, I have a gap of .555.” I realized there was no cheap way to re-engineer the hinge. The pivot point has to be right on the division line of the hood and nose.
My real only option is to adjust the length of the nose and shorten the hood, which I have started.
Your question is when will it be done. The answer is I don’t know. This involvement won’t be done fast because I work it in with all my other product projects. Sorry for the delay but I’m giving you the truth even if it isn’t happy.
Report 8/2/22

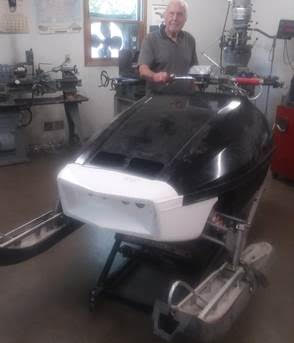

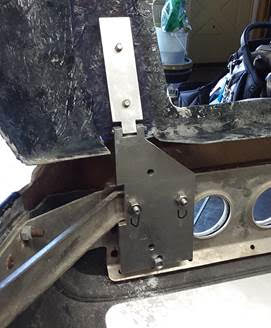

That feller is Tom Dousette. He is the guy I go to for specially made parts. This weekend I took him my sled, hood, nose and lift. I have challenged him to develop my RXL hinges. At first blush, it doesn’t look like an easy project. There are issues of having the front hood edge having lift up and forward over the nose. It may come that I wouldn’t be able to have invisible hinges because the pivot point has to be where nose and hood meet. We all are going to have another issue. As the hood rises, it will probably contact the handle bars. So we all have to get used to maneuvering the hood rear around scratch-able contacts. I will have a procedure and an Indian chant to get this done cleanly. More info when I have it.
Phil
Report 11/1/21
The process of developing a hidden hinge system for the new RXL hood is going to be more complicated than I thought. Above is a customer’s sled. You’ll see he put hinges on his just Indy inside of the surrounding red stripe. I want my hinges hidden under the red stripe. The Polaris aluminum support for the old hinge system is narrower than will be my support. My system has to allow for this disparity. When I’ve solved this issue I will report back.
Report 12/21/20
The old mold that made 200+ RXL SnoPro hoods was exhausted. Fiberglass molds don’t last forever. Its viability was compromised by past suppliers who botched the surface with repairs. The last parts from that mold had to reworked and polished. The time it took ground away at profitability.
Now because there are so many of you wanting RXL SnoPro hoods for Indys, I feel it’s time to layout my plans.
Here’s my timing:
- I have to order a new hood and nose which become the “pattern” part. Money is tight now with COVID.
- I have to alter the hood with my changes-a hinge opening, corrections to mating lines of nose and hood. I have no viable place to work on this this pattern. The heated part of my shop is very small therefor I want to avoid the mountains of dust which will result. I have to wait for warmer weather so I can work outside my shop door.
- I have to pony up the funds to make a new mold--about $1200.
Then I’ll have hoods to sell.
When I start, I promise to send you periodic updates so you can get a clue when they will be done. Right about that time, I will be asking you to give me a commitment to purchase so I can alert all my suppliers. The date of the orders I get from you when I say “go” will be the order in which they will be issued.
Thanks. Phil
